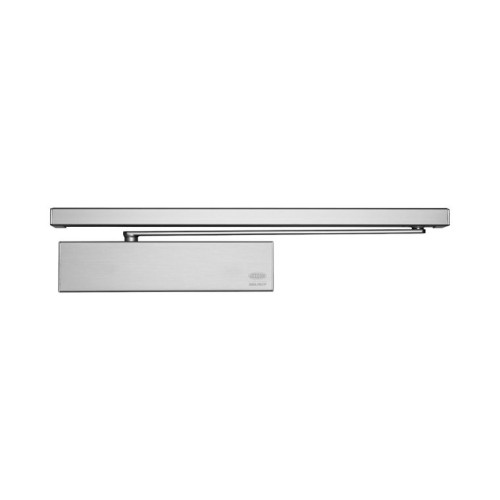

G'day! If you're installing a Lockwood 2615, you're working with one of the smoothest closers on the market. Unlike standard arm closers, this Cam Action model uses a slide track, making it perfect for hospitals, aged care, or high-end offices where you want a sleek look and easy opening.

Precision is the name of the game here. Because the arm slides inside a track, your measurements between the closer body and the rail need to be spot-on to prevent binding.

What’s in this Template?

• Slide Track Alignment: Exact positioning for pull-side (door mount) and push-side (transom mount).
• Opening Angle Specs: How to set the limit stay so the door doesn't hit the wall.
• Adjustable Strength: Clear instructions on setting the power size (EN 1-5) once mounted.

Mate's Advice: Cam Action closers are sensitive to "stack pressure" in buildings. Use this template to get the mounting right, then use the independent latching and closing valves to dial in the perfect shut. Don't forget to check your print scale!

Mate, Read This: This closer has adjustable backcheck, which prevents the door from catching the wind and slamming into the wall. Make sure you use the template to position the body correctly, or the backcheck won't engage where it’s supposed to!
